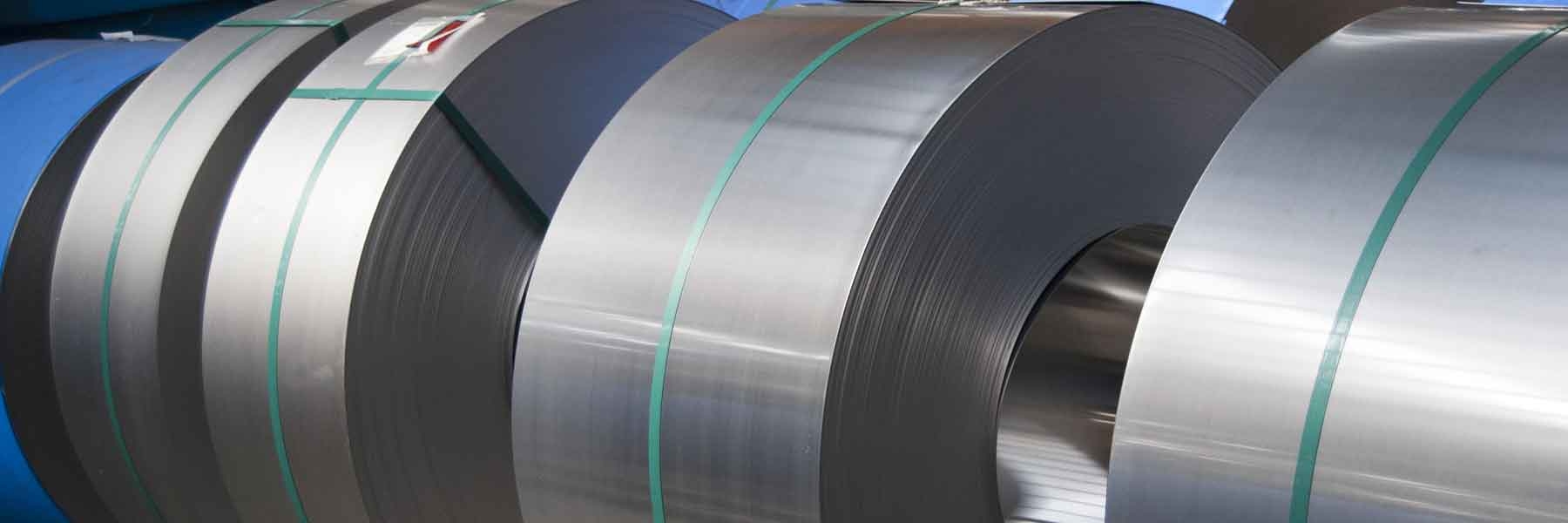

STAINLESS STEEL COIL
Specifications
| COLD ROLLED STAINLESS STEEL COIL | ||
| Grade: 201,202,409,410s,430,304/304L,316L,321,317L,310S,2205,2507 and so on. | ||
| Standard: ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2 | ||
| Surface | Width | Thickness |
| 2B,BA,HL,NO.4,SB, | 1000mm ~ Max. 1540mm | 0.3mm ~ 6.0mm |
| HOT ROLLED STAINLESS STEEL COIL | ||
| Grade: 409,410s,430,304/304L,316L,321,317L,310S,2205,2507 and so on. | ||
| Standard: ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2 | ||
| Surface | Width | Thickness |
| NO.1 | 1220mm ~ Max.2000mm | 3.0mmâ€â€12.0mm |
| CHEMICAL COMPOSITION ( IN PERCENTAGE ) | ||||||||||
| Cu/ Others | N (Max) | Mo | Ni | Cr | Si (Max) | S (Max) | P (Max) | Mn (Max) | C (Max) | Grade |
| – | 0.25 | – | 3.50-5.50 | 16.00-18.00 | 1.00 | 0.030 | 0.060 | 5.50-7.50 | 0.15 | 201 |
| – | 0.25 | – | 4.00-6.00 | 17.00-19.00 | 1.00 | 0.030 | 0.060 | 7.50-10.00 | 0.15 | 202 |
| – | 0.10 | – | 8.00- 10.50 | 18.00 – 20.00 | 1.00 | 0.030 | 0.045 | 2.00 | 0.08 | 304 |
| – | 0.10 | – | 8.00- 12.00 | 18.00 – 20.00 | 1.00 | 0.030 | 0.045 | 2.00 | 0.030 | 304L |
| – | 0.10 | 2.00 – 3.00 | 10.00- 14.00 | 16.00 – 18.00 | 1.00 | 0.030 | 0.045 | 2.00 | 0.030 | 316L |
| Ti5xC Min | 0.10 | – | 9.00 – 12.00 | 17.00 – 19.00 | 0.75 | 0.030 | 0.045 | 2.00 | 0.08 | 321 |
| Ti= 6x (C+ N) | – | – | 0.50 | 10.50 – 11.75 | 1.00 | 0.010 | 0.040 | 1.00 | 0.08 | 409 |
| – | – | – | 0.60 | 11.50- 13.50 | 1.00 | 0.030 | 0.040 | 1.00 | 0.08 | 410S |
| – | – | 0.75 | 16.00 – 18.00 | 1.00 | 0.030 | 0.040 | 1.00 | 0.12 | ||
